SK-40E
| Availability: | |
|---|---|
| Quantity: | |

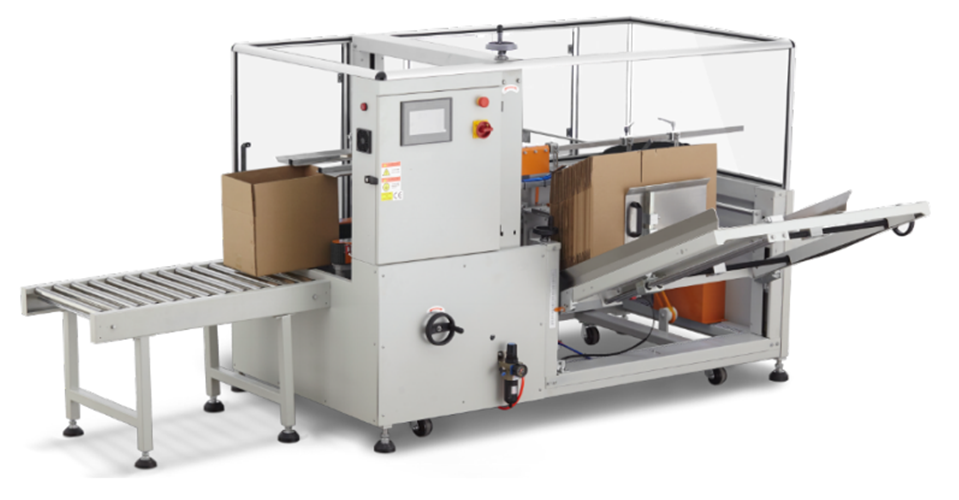

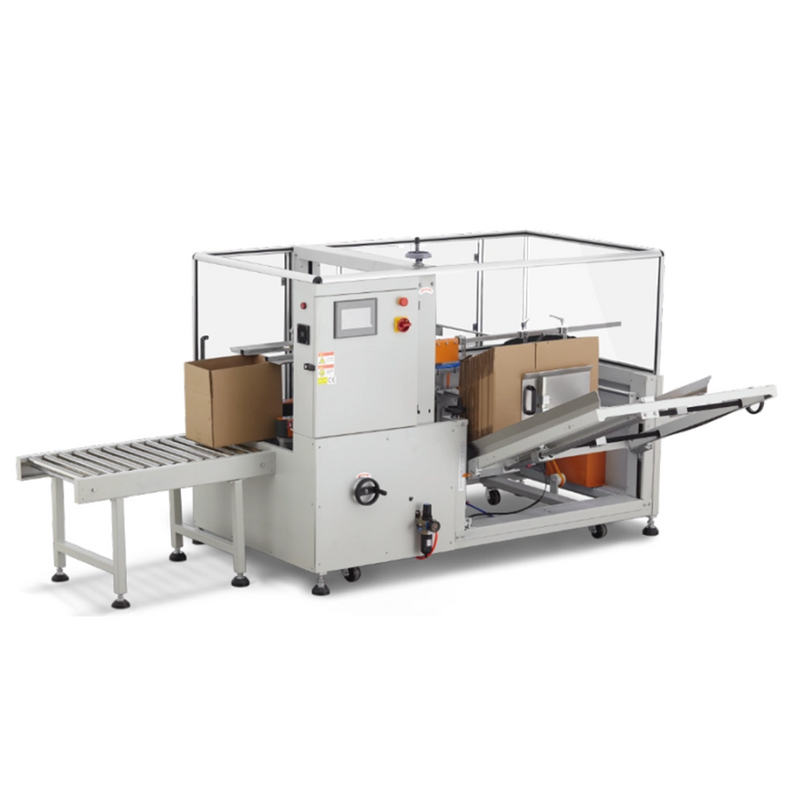

Automatic Carton Erector Machine

Carton Ejector SK-40E catalogue.pdf
Features:

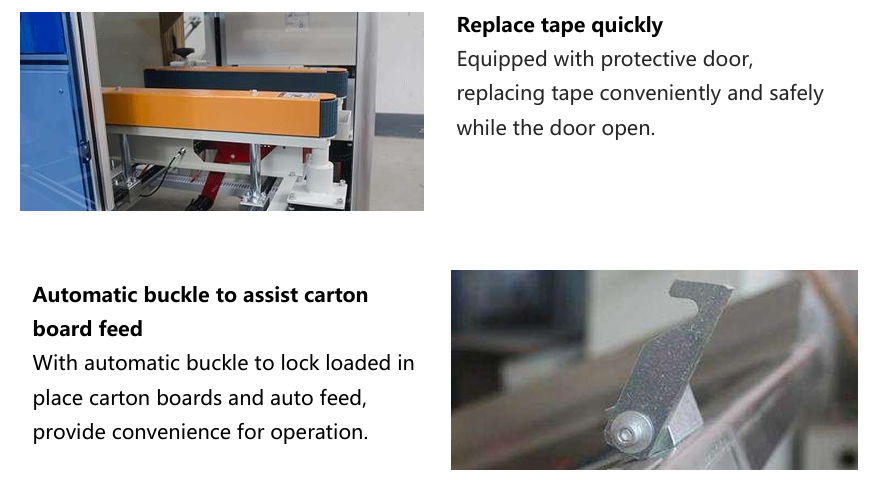

Replacing tape easily, adding protective door for replacing tape conveniently and quickly while door open.
Durable spare parts, adopting endurable spare parts, electronic and pneumatic components.
Ready to be interfaced into fully automatic packaging line, also work as independent machine.
Automatic packaging, saving labor costs, eliminating manual work.
Broken tape alarm, stop running at door open to avoid accident and ensure safety.
Specifications
| Name | Automatic Carton Erector |
| Carton Opening Speed | 10~12 cartons /minute |
| Carton Size | L250-450×W150-400×H100-400mm as standard customized into below L270~510×W150~350×H100-400mm |
| Power Supply | 220V 50/60Hz 1 Phase |
| Power | 240W |
| Adhesive Tape Width | 48/60/75mm |
| Carton Storage Quantity | 80-100pcs (800-1000mm) |
| Air Consumption | 450NL/min |
| Air Compressing | 6kg/cm³ |
| Table Height | 620+30 mm |
| Machine Dimension | L2100×W2100×H1450mm |
| Machine Weight | 450Kg |
Main Parts:
1. Motor: Taiwan
2. Power Switch: KACON Korea
3. Bearing: China
4.Cutting knife: China SKD11
5. Conveyor belt: China
6. Caster: YX-200
7. Contact switch: Omron Japan
8. Intermediate relay: IDEC Japan
9. AC contactor: France
10.Cylinder: Air Tac Taiwan
11.Solenoid: Air Tac Taiwan
12.PLC: SIEMENS
13. Photocell: LEUZE Germany
14.Touch Screen: MCGS 7''

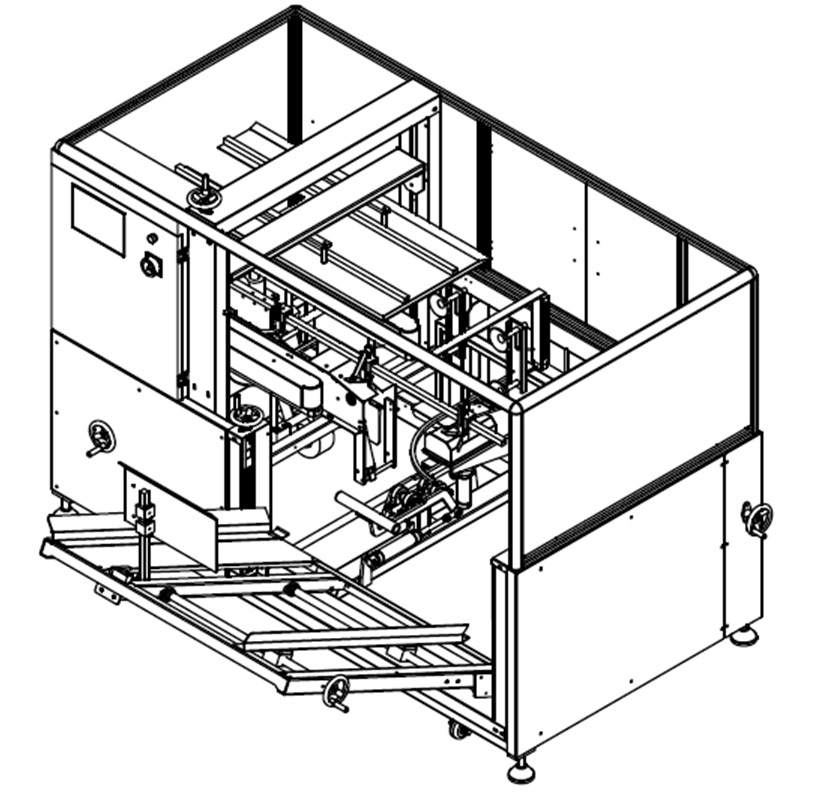

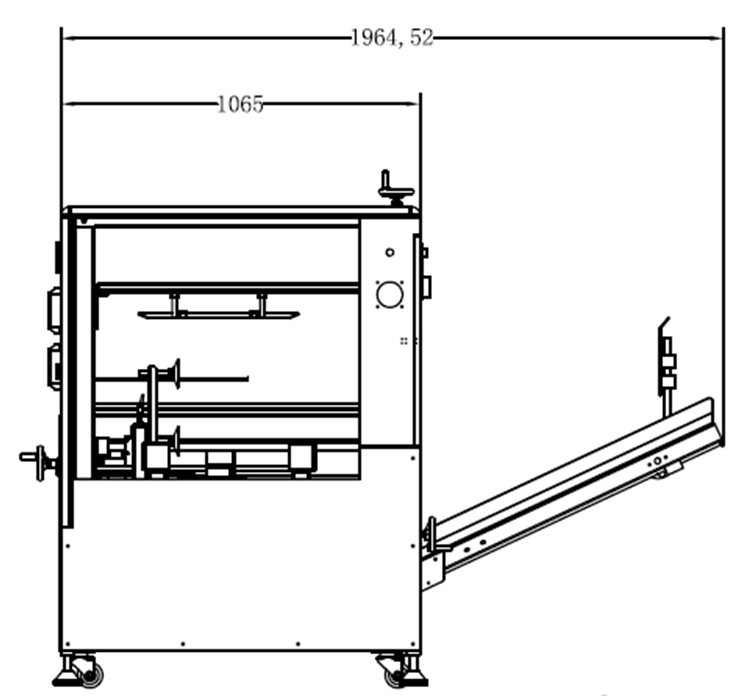

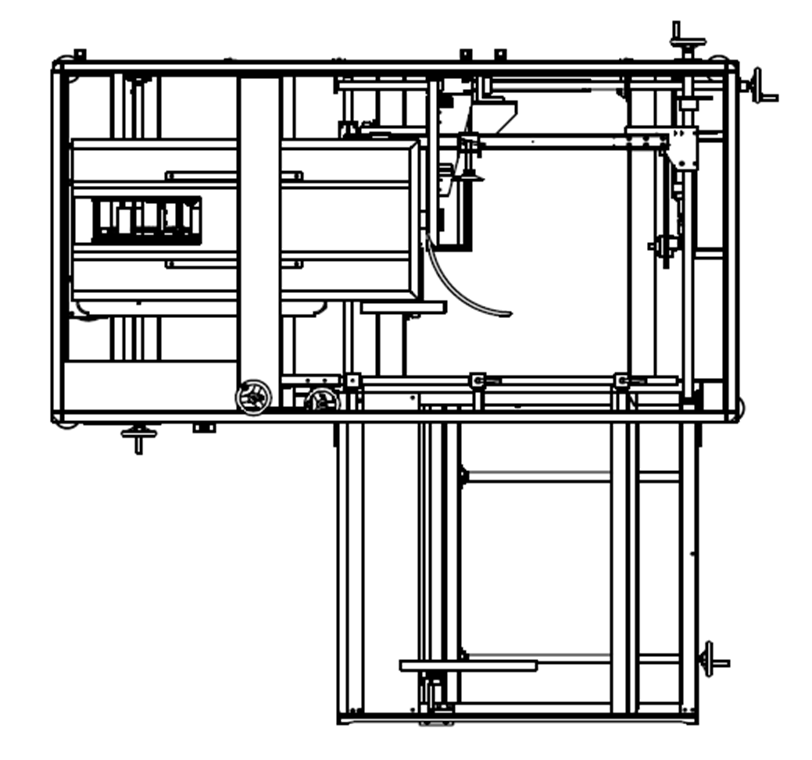

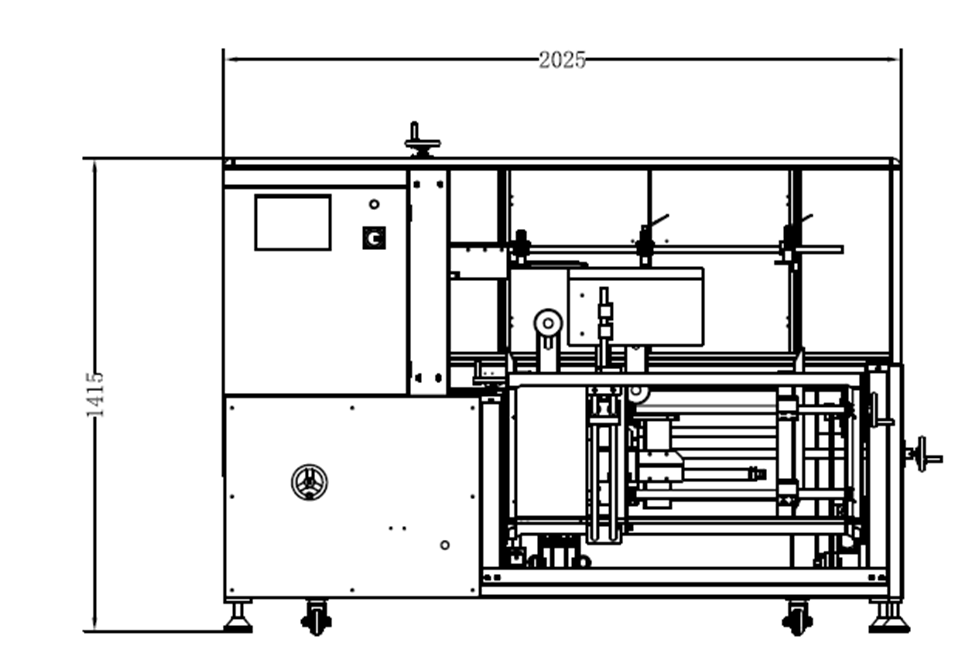

Drawing layout
